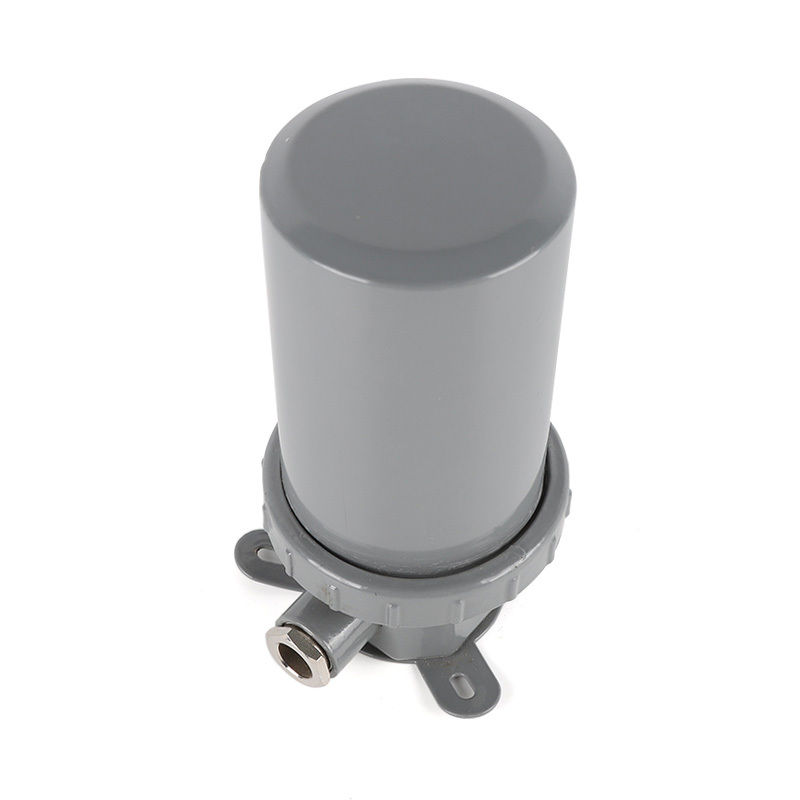

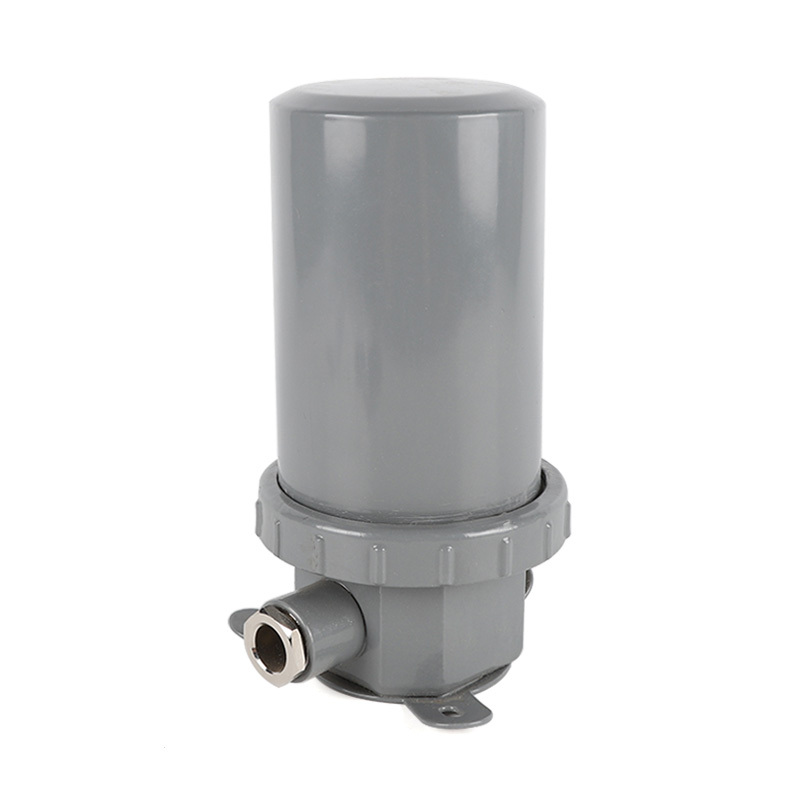

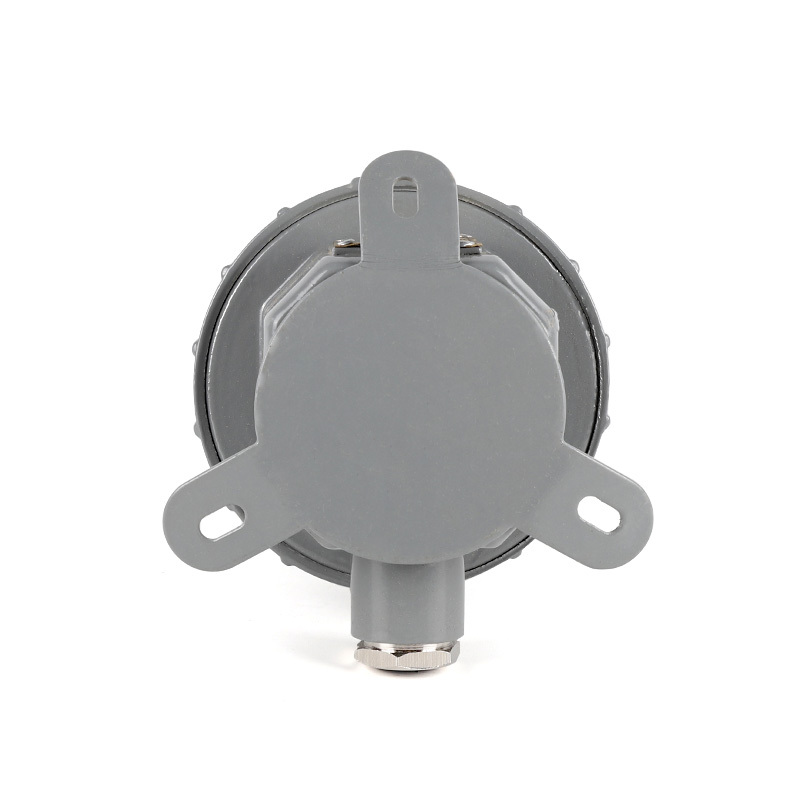

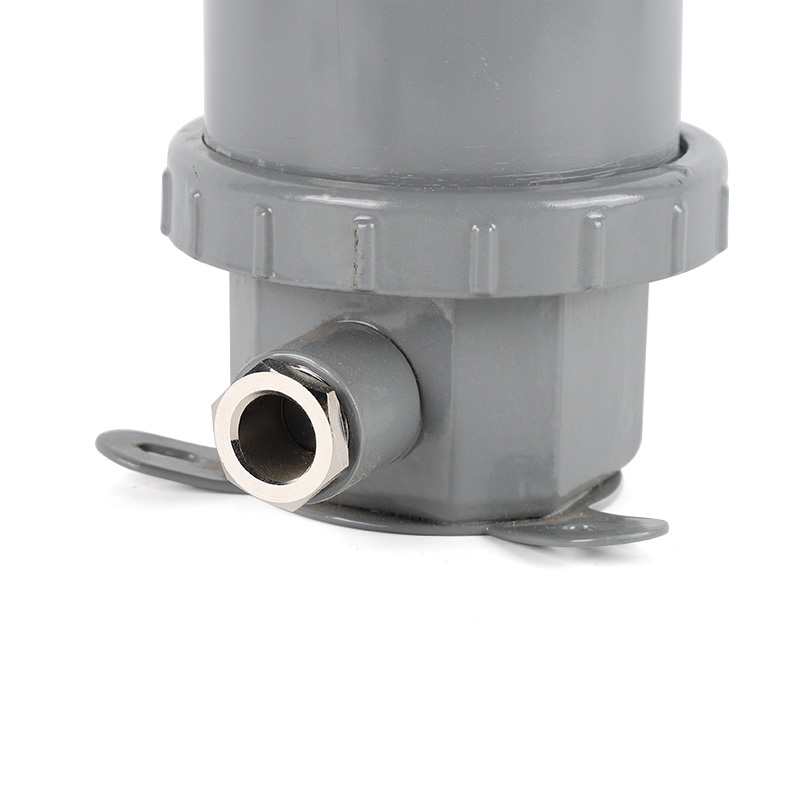

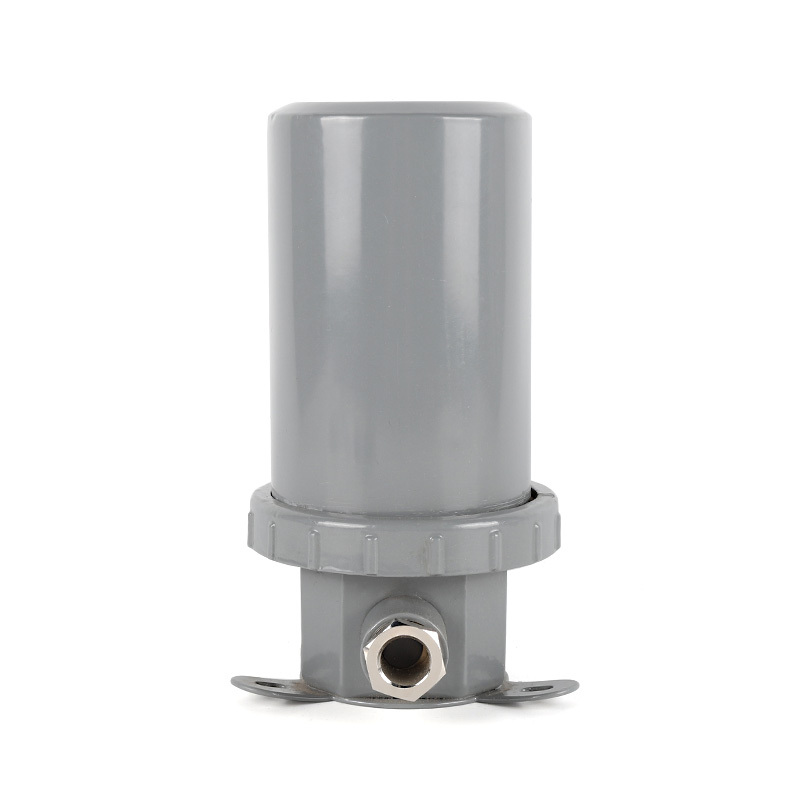

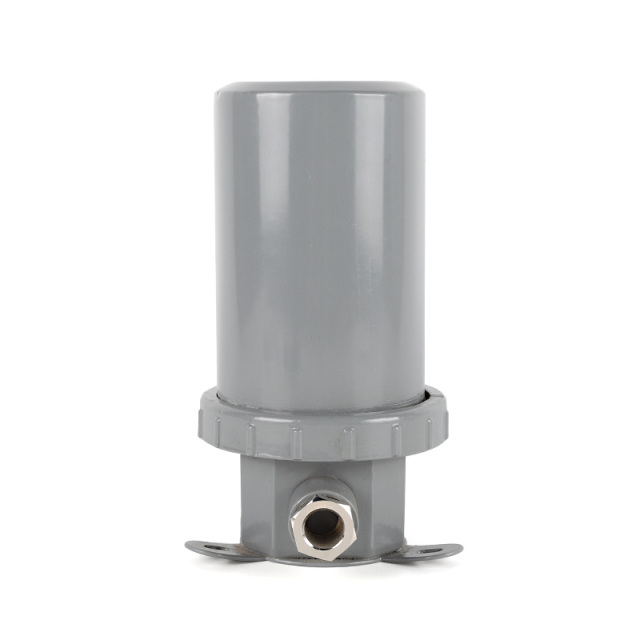

Marine Navigation Signal Light Panama Canal Turn Signals

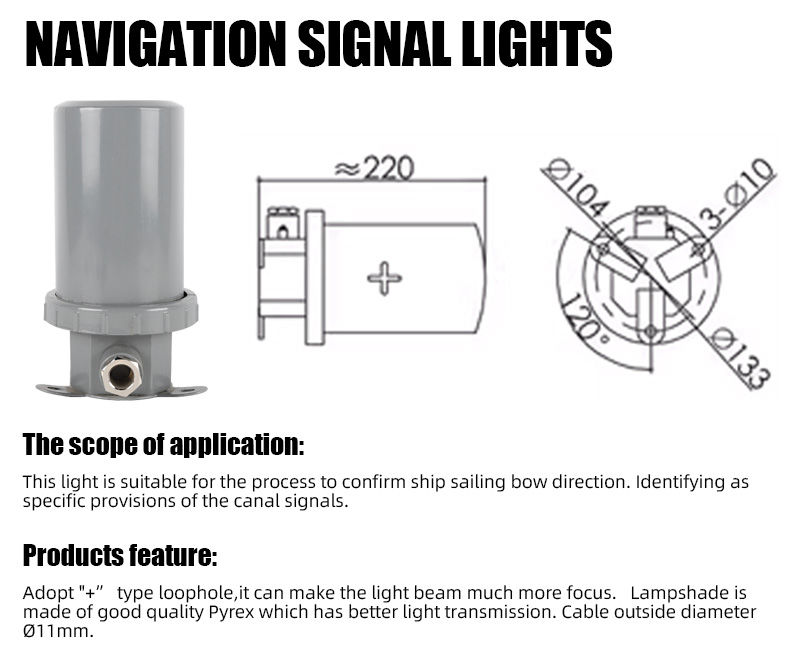

It is applicable to confirm the heading direction of the ship during navigation and is suitable for the specified signal identification of a specific canal.

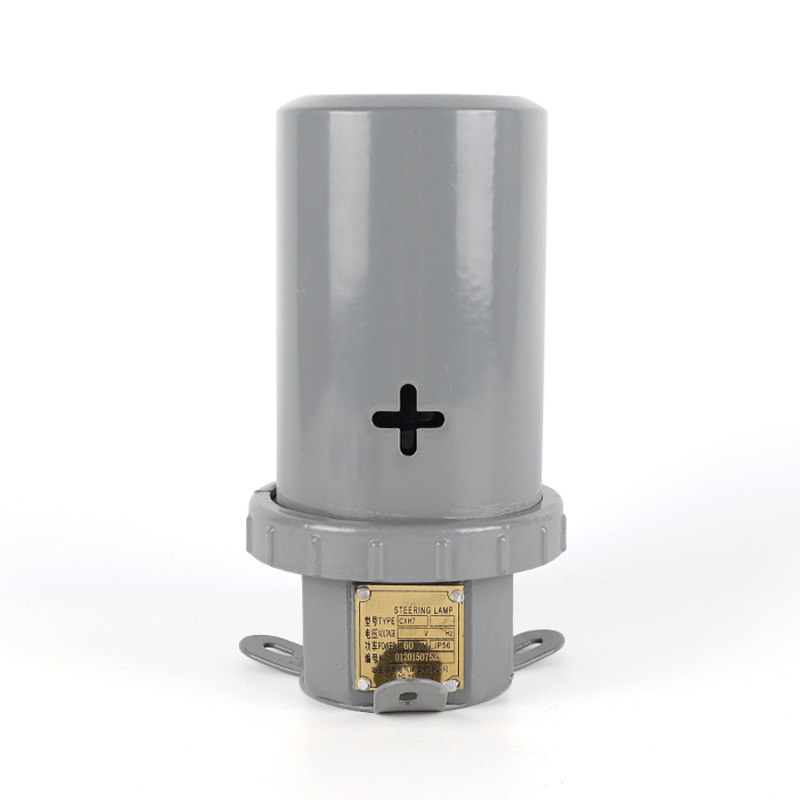

Product Features 1. The shell is made of high-strength aluminum alloy shell, the light transmission cover is made of PC injection molding, and the light shield is made of high-quality stainless steel molding. 2. "Ten" font light transmission hole, so that the beam is more concentrated. 3. The lamp has an overall sealing structure, which has a waterproof effect in harsh environments. 4. The connection between the lamp holder and the base adopts the plug type, and the lamp can be replaced by opening the top cover. 5. The lamp can work normally in the range of ambient temperature of -30 to 55 degrees.
Adoption Criteria 1. In line with the "1972 International Sea wall Collision regulations" and "steel sea ship classification code". 2. In line with GB/T3028 "Marine electrical lights" and "Panama Canal requirements for ships"
A Signal Light For a Ship's Night Navigation (1) A lantern at the front; (white) (2) The second mast light after and above the foremast light (a vertical height difference of at least 4.5 m; For ships less than 50 metres in length, it is not required to display the mast lights); (white) (3) Two side lights; (left red right green) (4) A taillight. (white)
The Display Mode of Various Signal Lights (1) Masts: Lights placed above the mast of the ship or above the center line of the head and tail, showing uninterrupted lights in a horizontal arc of 225 degrees, and installed so that the lights are displayed from directly in front of the ship to within 22.5 degrees behind each beam.
(2) Side Lights: the red light on the port side and the green light on the starboard side placed on the left and right sides of the highest deck of the ship show uninterrupted lights from the bow to the stern in a horizontal arc of 112.5 degrees respectively. It is installed so that the lights are displayed from directly in front of the ship to within 22.5 degrees behind the beam of each side.
(3) Taillight: white light placed in the stern. A continuous light is displayed in a horizontal arc of 135 degrees and is arranged so that the light is displayed from directly behind the ship to 67.5 degrees on each side. The height of the mastheads shall be as level as possible with the side lights, but not above them.
