Technical Parameters
Model：HXCYD100W-C
Rated Power：100W SMD LED
Input Voltage：AC/DC 100~240V Wide Marine Voltage
Luminous Flux：13,000lm
Color Temperature：5000K~6000K Cool White
Beam Angle：120° Wide Flood Lighting
LED Lifespan：≥50,000 Hours
Protection Grade：IP66 Waterproof & Dustproof
Explosion Proof Grade：Ex d II CT4
Anti-corrosion Grade：WF2 Salt Fog Resistance (Marine Standard)
Housing Material：Die-cast Aluminum Alloy, Anti-rust Coating
Bracket：Adjustable U-type Mount Bracket
Mounting Way：Deck Wall / Platform Fixed Installation
Working Temp：-40℃ ~ +55℃
Explosion Warning：Do Not Open While Energized
Certification：CCS Marine Approval, Explosion-proof Certificate
Core Advantages
Adopt Ex d II CT4 flameproof isolated cavity design.
Even if electric spark generates inside, the flame will be cooled and extinguished through flameproof joint surface, avoiding ignition of oil & chemical steam. Double sealed independent driver & light source chamber, compliant with Zone 1 & Zone 2 hazardous marine areas.
Marine Grade Anti-corrosion & Salt Fog Resistant
Whole housing with WF2 marine anti-rust spray coating, withstand long-term sea salt fog erosion, no rust or peeling for long-term offshore use.

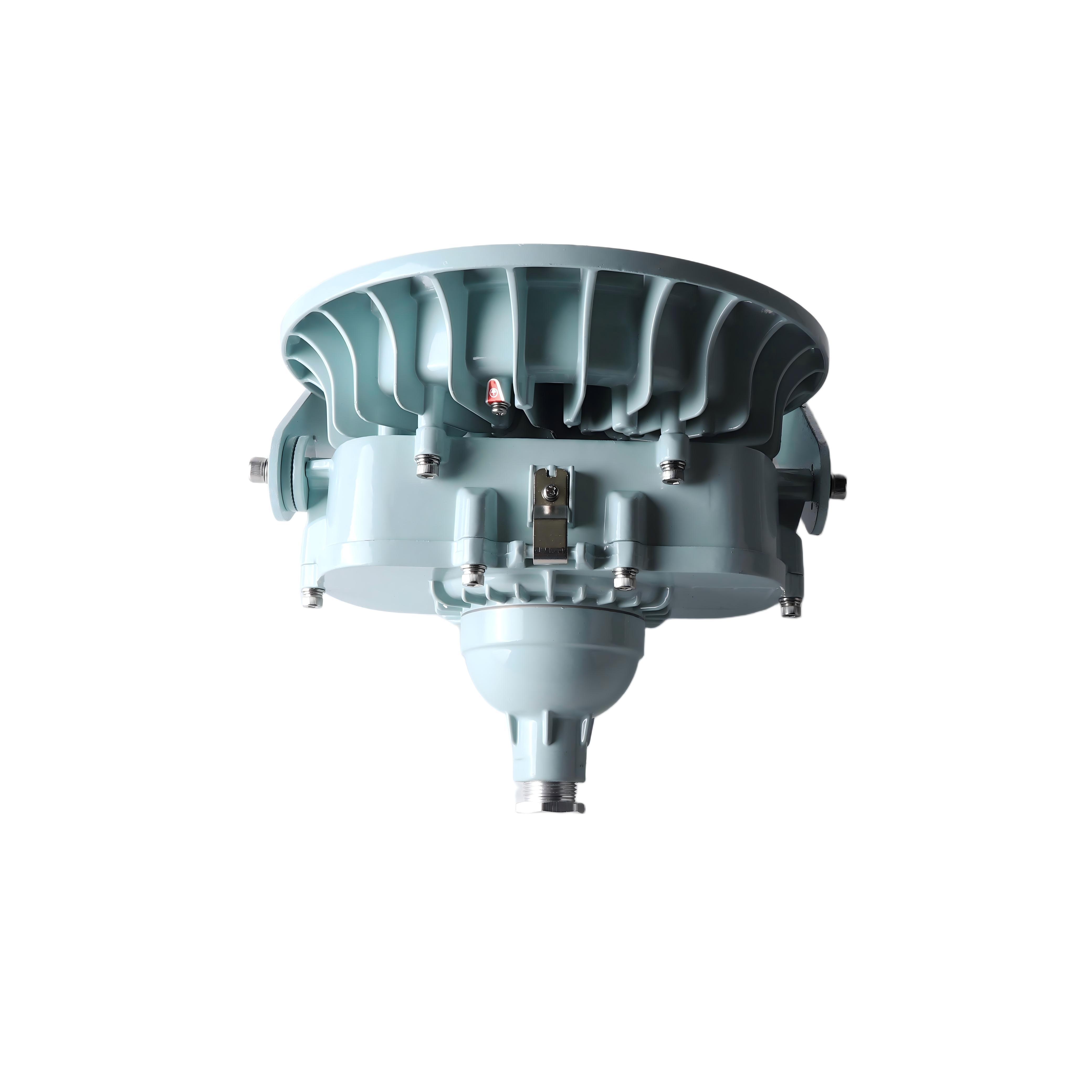

Efficient Integrated Heat Dissipation
Circular hollow integrated heat sink, tightly fitted with LED aluminum substrate. Rapid heat convection with sea wind to lower lamp temperature, reduce light decay and extend service life.
IP66 Full Waterproof & Dustproof
Multi-layer silicone sealing ring + explosion-proof cable gland, completely block seawater splashing, rain, dust and moisture, suitable for open deck all-weather use.

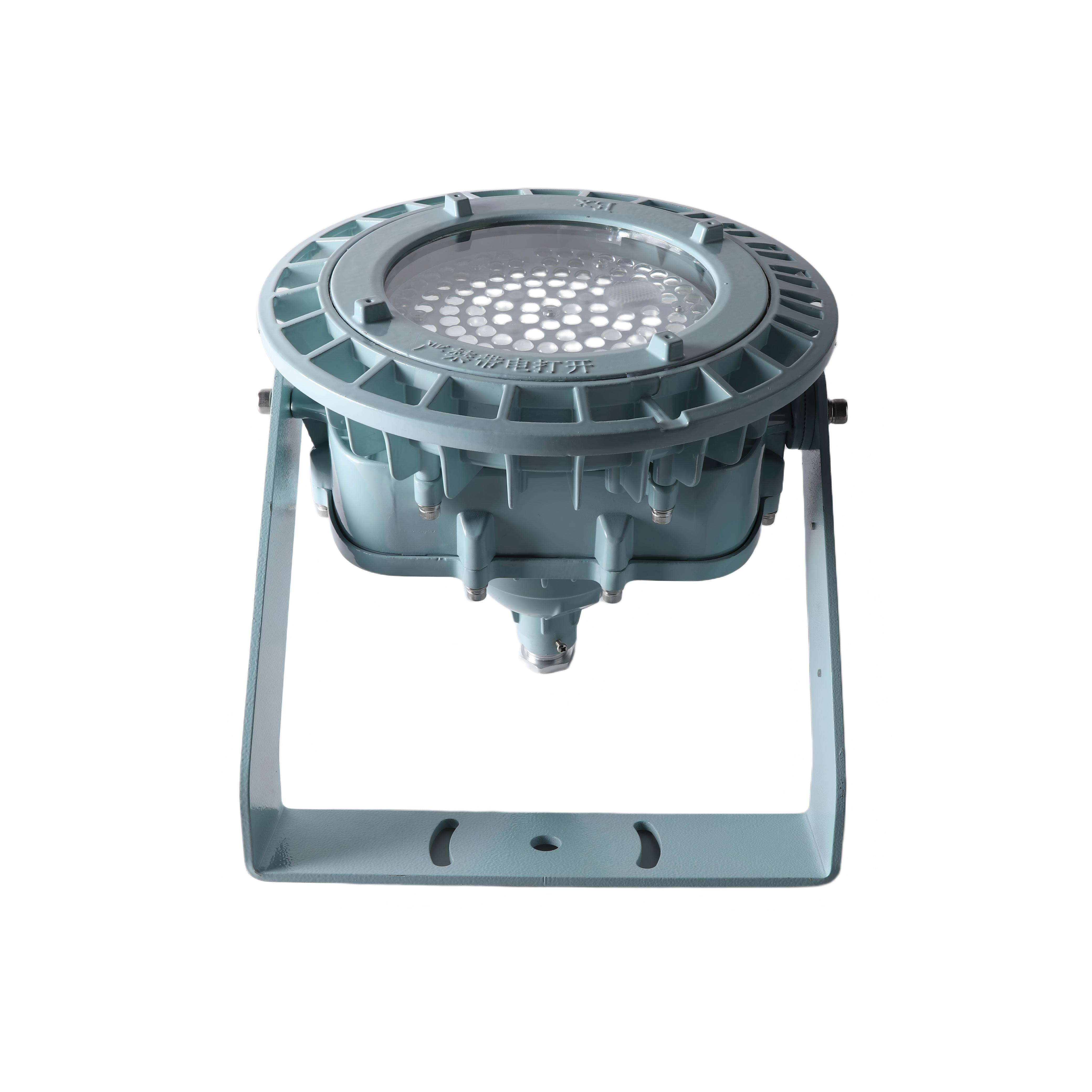

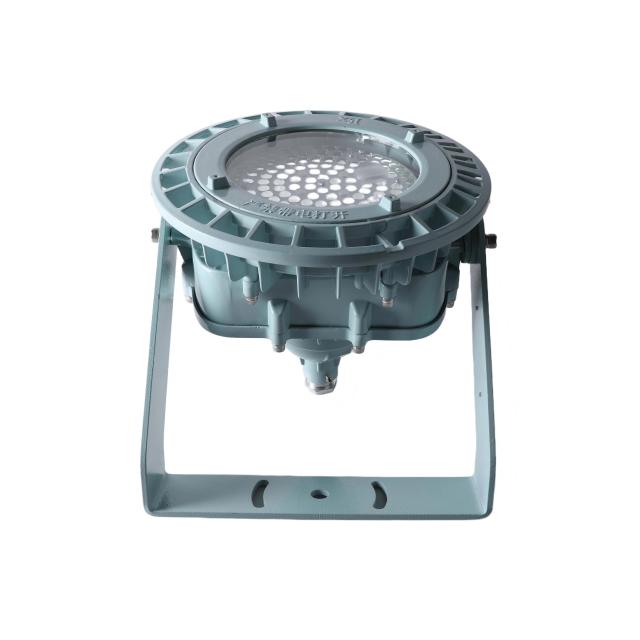

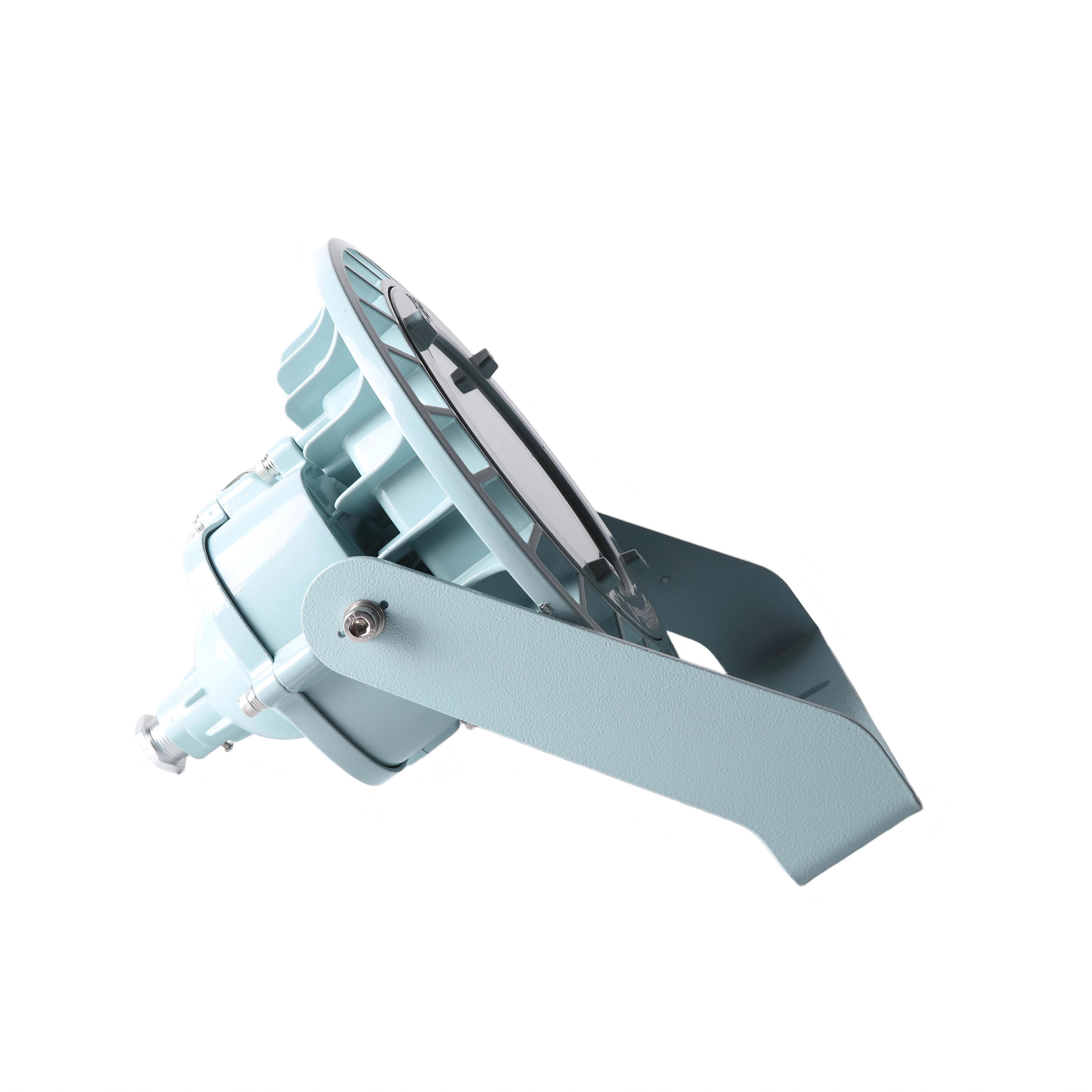

Adjustable U-type Installation Bracket
360° vertical angle adjustment, multiple fixed holes on base, easy to install on ship bulkhead, deck and offshore platform support.
Wide Marine Voltage & Stable Drive
Built-in constant current explosion-proof driver with overvoltage, short circuit and surge protection, compatible with ship AC/DC 100-240V unstable power grid, no flicker.

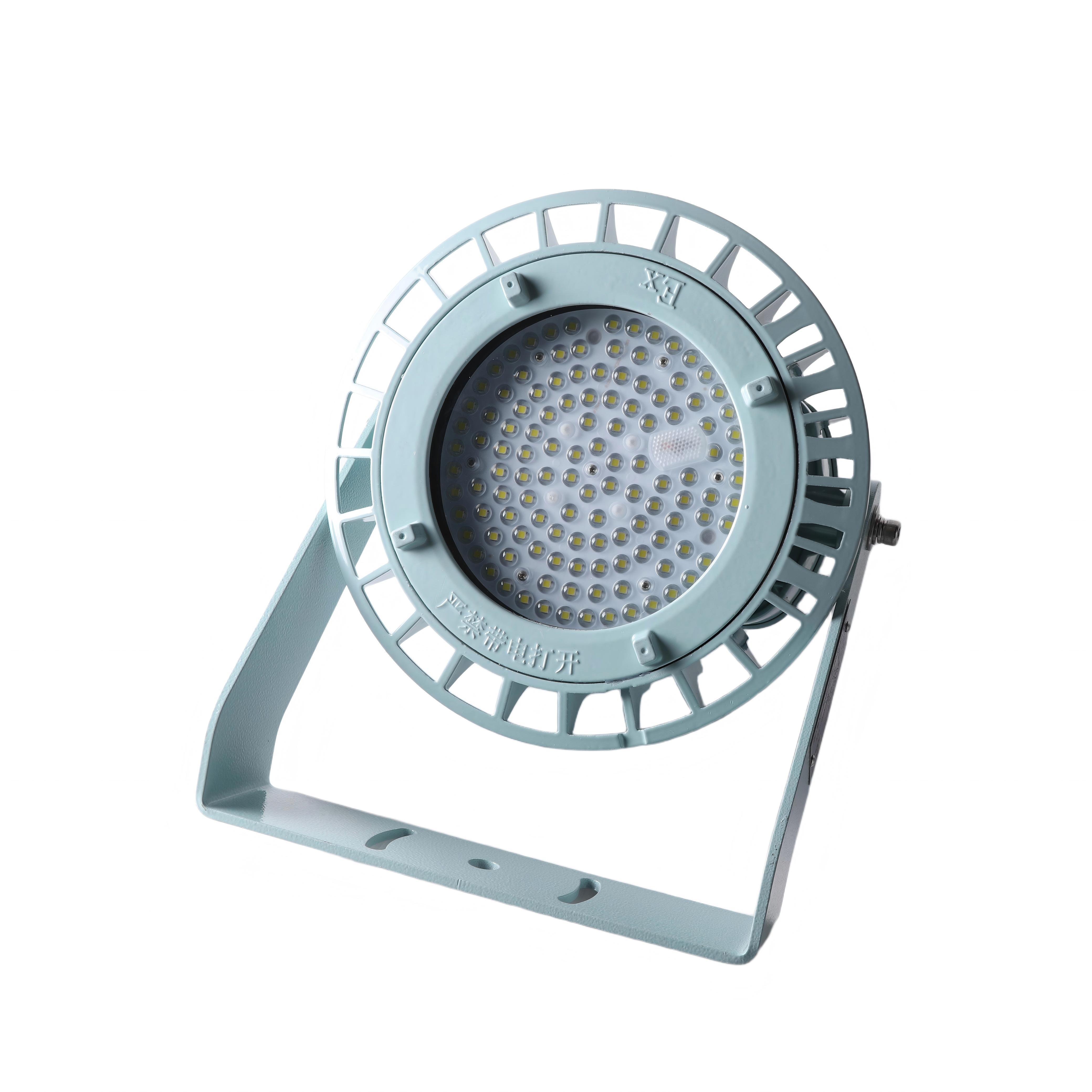

Ultra Long Service Life
High brightness SMD LED chips, average service life up to 50,000 hours, reduce ship maintenance frequency and replacement cost.
Working Principle
Power Supply System
Marine wide voltage power enters through explosion-proof sealed cable gland to prevent combustible gas entering lamp body. Built-in isolated explosion-proof constant current driver converts AC/DC high voltage into stable low DC constant current for LED chips, with multiple circuit protections against ship grid voltage fluctuation.
Flameproof Explosion-proof Principle
Separate flameproof cavity for light source and power driver with precise machined flameproof joint surface. Internal sparks/flames are cooled and extinguished via narrow flameproof gap, unable to ignite flammable gas outside the lamp housing. The whole sealed structure avoids gas permeation into internal cavity.
Heat Dissipation Principle
LED aluminum substrate closely fits integrated aluminum heat sink housing. Heat generated by LED chips is quickly conducted to circular hollow radiating fins, dissipated via natural air convection & sea wind, controlling working temperature to protect LED chips and sealing rubber rings.
Maintenance Instructions
Daily Inspection (Every Shift)
Check housing for cracks, deformation, peeling paint or corrosion; ensure flameproof joint surface and silicone seal ring intact without aging crack.
Clean salt dirt & oil blockage on heat sink fins to guarantee heat dissipation efficiency.
Inspect cable gland for tight sealing without water seepage, cable outer skin no wear.
Power on test: no flicker, abnormal high temperature or burnt smell.
Regular Maintenance (Monthly Routine / Dock Overhaul Deep Maintenance)
Cut off power and cool down the lamp completely before any maintenance (Never open the lamp with electricity).
Clean housing and lens with fresh water + neutral marine desalting cleaner, soft cloth only (No steel wool or strong acid detergent).
Polish rust spots, re-spray marine anti-corrosion paint on damaged coating areas.
Lubricate bracket fixing bolts with anti-rust grease to avoid salt fog locking.
Replace aging silicone sealing rings every 6 months to maintain IP66 & explosion-proof performance.
If LED flickering or dark light occurs, replace LED light board or explosion-proof driver with same model spare parts.
Application Scope
Vessels: Oil Tankers, Chemical Carriers, Container Ships, Bulk Carriers, Dangerous Cargo Ships (Open Deck, Pump Room, Cargo Hatch)
Offshore Facilities: Offshore Oil & Gas Platforms, Drilling Rigs, Floating Production Units
Shore Base: Dangerous Chemical Wharf, Oil Storage Depot, Explosion-proof Industrial Zone with salt fog environment
Explosion-proof Certificate
CCS Marine Product Approval Certificate CCS
WF2 Salt Spray Anti-corrosion Test Report
IP66 Waterproof & Dustproof Test Certificate
Product Dimension CAD Drawing
Explosion-proof Structure Technical Drawing
