| Model |
Series 2 | |
| Installation Interface | SAE# Standard Structure No. | 1,2,3 |
| Diesel Engine Displacement | L/Cylinder & Max Cylinder No. | 1.7 & 6 |
| 1.4 & 8 | ||
| Driving Moment | Nm | 126 |
| Max. Disc Driving Torque | Nm | 100 |
| Weight | Kg | 22 |
| Rotation Count | Circle | 2+11 |
Characteristic
Applicable to engines with an engine displacement of 7 to 10 liters.
The sturdy and durable design is suitable for harsh environments as well, such as high humidity and salt spray.
Environmental protection, no need for batteries, sustainable for the environment.
Does not rely on an external power source and is suitable for use in unstable or emergency situations.
Matched Engine Model
CUMMINS 6C
CUMMINS QSB7
JOHN DEERE 6068
WEICHAI POWER WP10
DEUTZ BF6M1015H
HCD TBD234 V6/V8

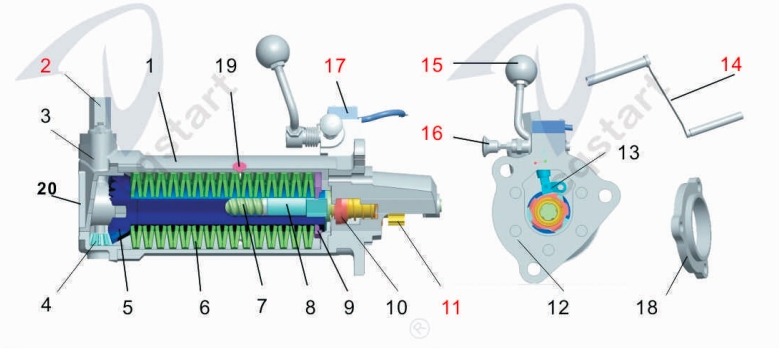

Fundamental Structure
| No | Part Name | No | Part Name | No | Part Name |
| 1 | Engine Body | 8 | Drive Screw Cap | 15 | Release Lever |
| 2 | Rotate the Shaft Head | 9 | Drive Ring | 16 | Raise the Handle |
| 3 | Rod Cover | 10 | Ratchet Ring | 17 | Interlock Protection Device |
| 4 | Rotate the Driving Gear | 11 | Flywheel-Driven Gear | 18 | Spacer Ring |
| 5 | Drive Gear Sleeve | 12 | End Cover | 19 | Inspection Window |
| 6 | Dish Springs | 13 | Pawl Stopper | ||
| 7 | Main Shaft | 14 | Rotating Dial Knob |
