The φ185×465 paper filter cartridge serves a critical role in marine engine hydraulic filter applications, designed to meet the needs of ship maintenance teams and marine equipment engineers. Its compatibility with standard marine engine hydraulic filter housings ensures direct replacement without modification, facilitating straightforward integration into existing filtration units. Operators of cargo vessels, tankers, and container ships can leverage this cartridge for routine and overhaul-based filtration, safeguarding hydraulic pumps and actuators essential to engine operation. The product is thus positioned as a dependable solution tailored for marine industrial users requiring precise filtration performance within hydraulic circuit systems.
Incorporating marine-grade multi-layer gradient filter paper, this hydraulic filter cartridge achieves high contaminant retention while maintaining desirable flow characteristics. Its structural design includes a stainless steel perforated cage that prevents deformation under hydraulic flow impact and vibration common in ship engine rooms. The integrated stainless steel lifting handle enables tool-free filter removal, enhancing maintenance efficiency. Sealing is maintained securely by oil-resistant rubber O-rings under widely fluctuating pressure conditions. Technical specifications of this φ185×465 paper filter cartridge, including dimension standardization and corrosion-resistant materials, reflect engineering advancements optimized for marine hydraulic oil filtration.
This paper filter cartridge is widely employed across various marine vessels requiring reliable hydraulic oil cleanliness to prevent wear and jamming of servo valves and actuators. By maintaining the purity of hydraulic fluid within marine engine hydraulic filter circuits, it supports the longevity and dependable function of marine main engine hydraulic systems. The product’s resistance to salt-mist corrosion and stable sealing under dynamic pressure profiles align with operational demands in marine engine rooms exposed to harsh environments. As a supply from a reputed marine replacement filter supplier, it is a strategic choice for ship operators seeking to optimize maintenance intervals and reduce unscheduled downtime.
Technical Specifications
Overall Dimension: Outer Diameter φ185mm, Total Height 465mm
Filter Medium: Marine-grade multi-layer gradient filter paper

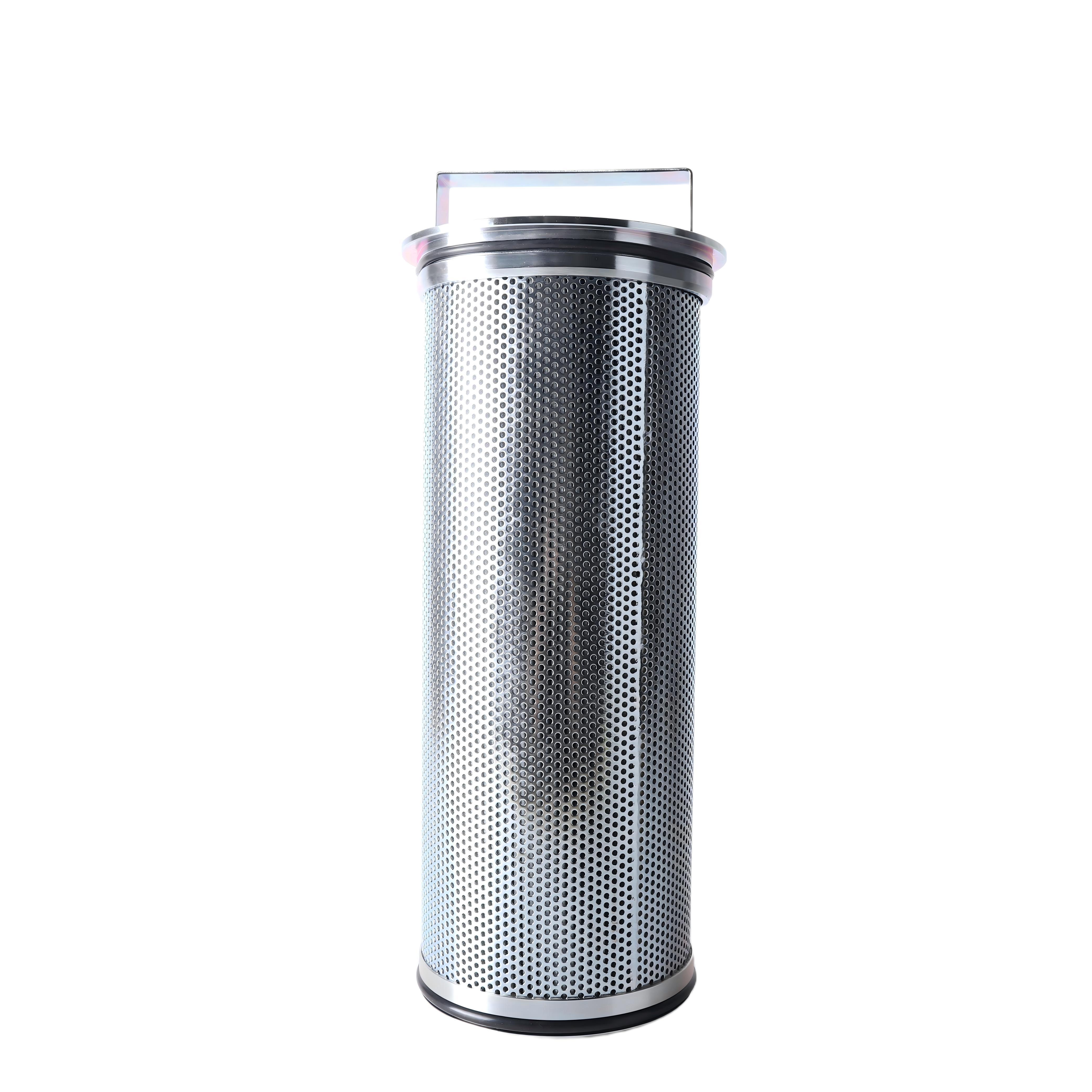

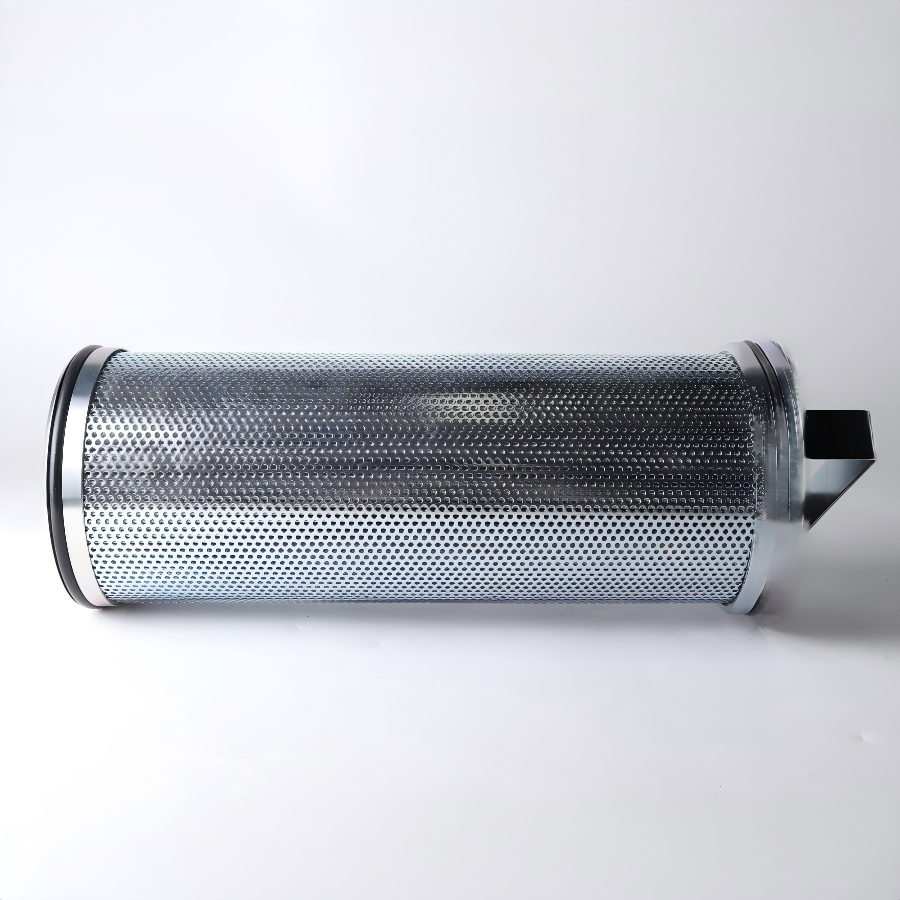

Outer Support Structure: Stainless steel perforated anti-deformation cage

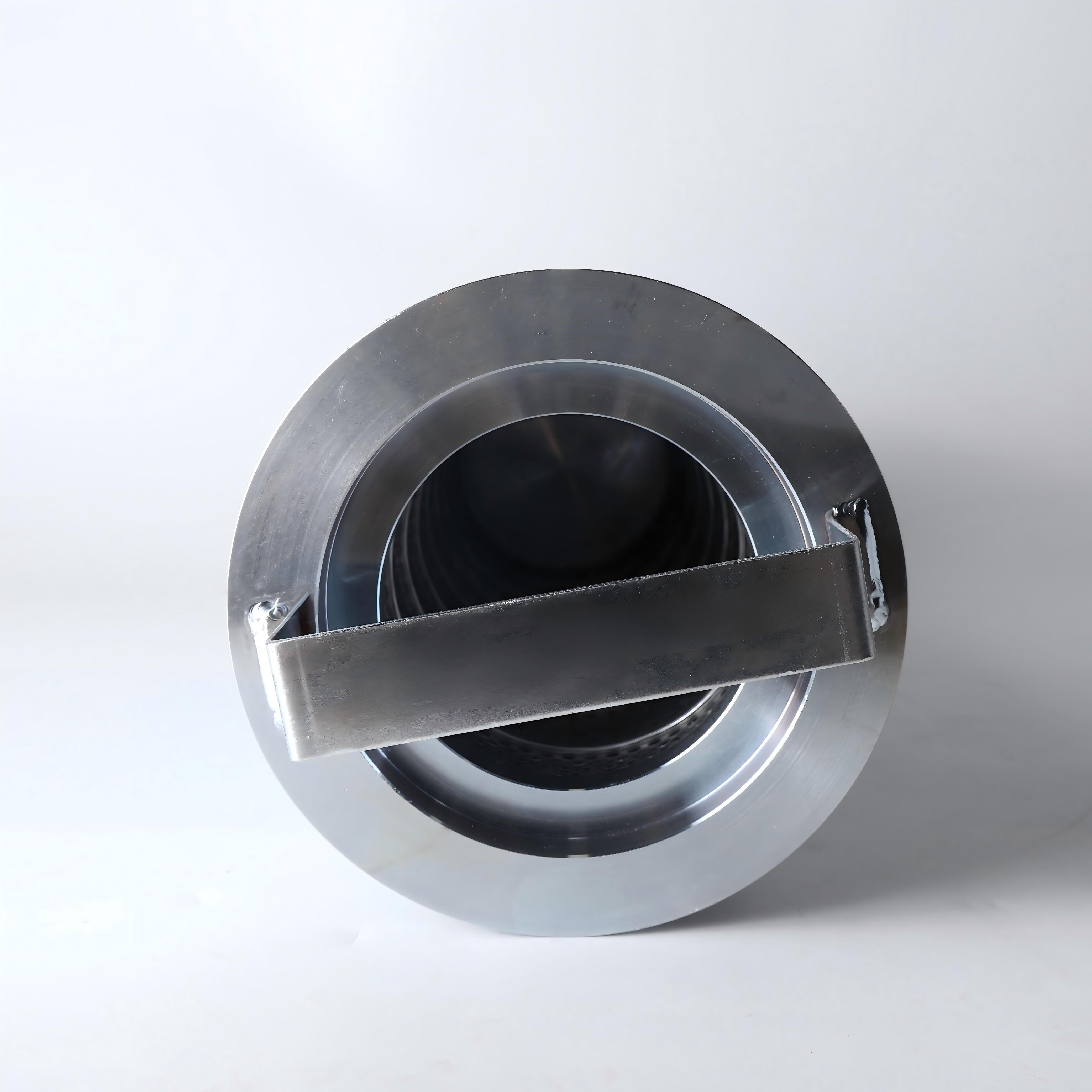

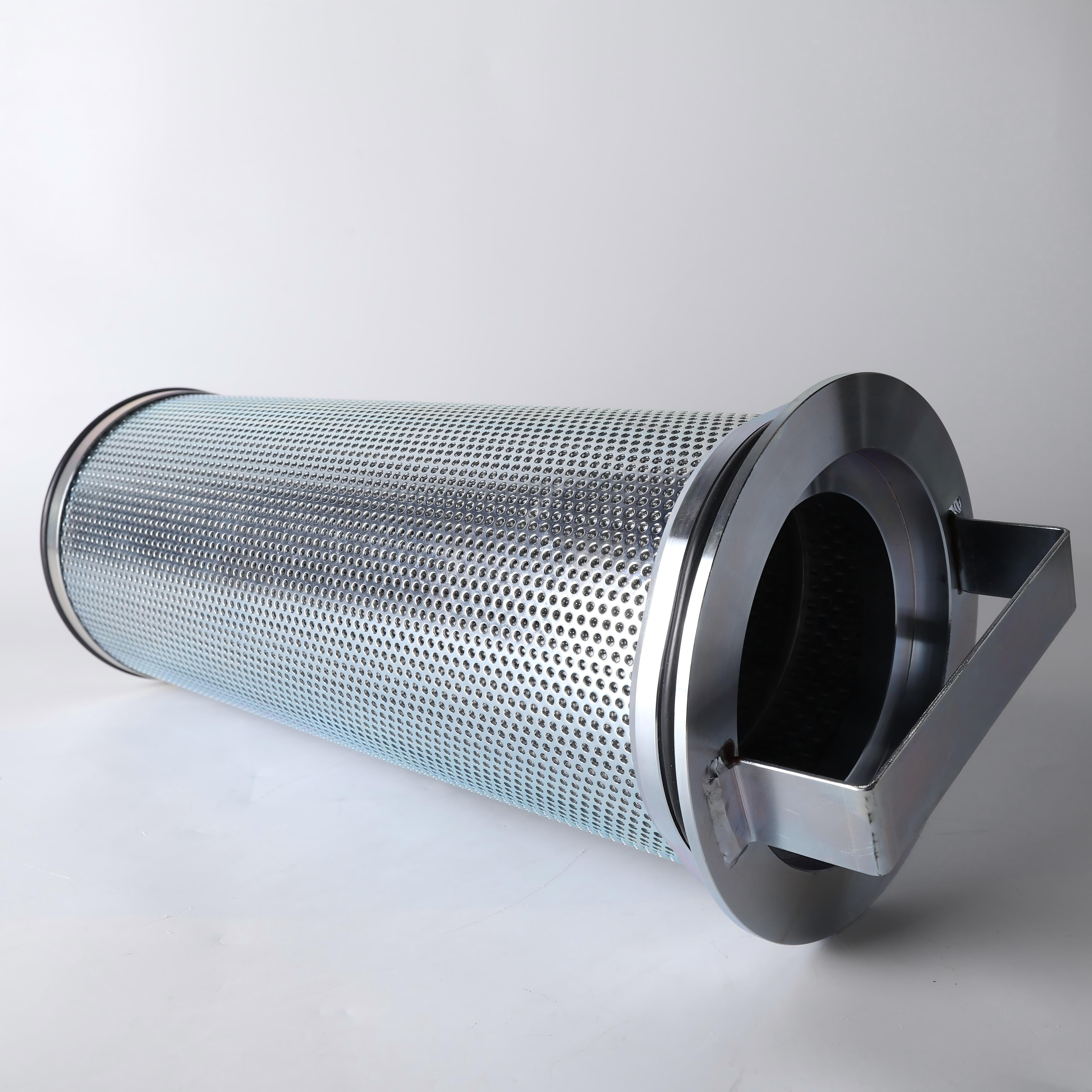

Top Accessory: One-piece stainless steel lifting handle for easy extraction
Sealing Component: Oil-resistant rubber O-rings on top & bottom ends
Applicable Equipment: Marine Main Engine (M/E) hydraulic filter unit
Medium Adaptation: Marine hydraulic oil, anti-emulsification, corrosion resistance
Working Temperature Range: -20℃ ~ 80℃
Feature Advantage: Low flow resistance, large dirt holding capacity, anti-rust housing for salt fog cabin environment
Key Features & Benefits
Convenient Onboard Maintenance
Built-in stainless steel lifting handle allows operators to take out the filter without extra tools, greatly shortening maintenance downtime during engine routine inspection.
Reinforced Stainless Steel Protective Cage
Uniform dense perforated outer shell supports filter paper firmly, avoiding filter media damage caused by hydraulic flow impact and cabin vibration. Excellent anti-rust performance against marine salt mist and high humidity.
High-performance Marine Filter Paper
Multi-layer gradient filter material intercepts fine particles steadily, maintains stable hydraulic oil cleanliness, reduces wear and jamming risks of main engine hydraulic control parts.
Double End Rubber Sealing Rings
High elasticity oil-proof O-rings eliminate oil leakage under fluctuating hydraulic pressure, stable sealing performance under long-time vessel navigation.
Standard Replacement Size
Standard φ185×465 dimension perfectly matches original M/E hydraulic filter housing, no modification required for direct replacement.
Engineering and Design Excellence
The φ185×465 paper filter cartridge features a modular design compatible with standard marine engine hydraulic filter housings, facilitating seamless retrofit applications. The layered marine-grade filter media is supported by a stainless steel anti-deformation cage, which ensures consistent structural integrity under engine room vibrations and hydraulic pulsations. The inclusion of a one-piece stainless steel lifting handle simplifies extraction procedures, reducing potential maintenance delays. Oil-resistant rubber O-rings at both ends guarantee stable sealing, minimizing the risk of pressure leakage or bypass even during rapid fluctuations in hydraulic line pressures. These design elements collectively enhance system integration and durability for marine hydraulic filtration setups.
Operational Performance and Maintenance Efficiency
Performance-wise, this paper filter cartridge delivers high contaminant capture efficiency essential for protecting critical hydraulic components of marine engines. The corrosion-resistant materials ensure reliable use within saline and humid marine environments, minimizing replacement frequency. Its dimension conformity (φ185×465) supports direct replacement, reducing downtime and inventory complexity. Tool-free removal via the lifting handle streamlines scheduled maintenance, benefiting marine engineers and technicians by simplifying filter change processes during tight inspection windows. As sourced from an established marine replacement filter supplier, this product supports extended operational reliability and cost-effective lifecycle management of hydraulic filtration systems.
Application Scenarios
Main Engine hydraulic control loop filtration for all types of ocean-going & coastal vessels
Routine maintenance spare part for marine M/E hydraulic filter system
Replacement filter element after hydraulic oil change, pipeline cleaning and system overhaul
Routine Maintenance in Marine Engine Rooms
In the stringent operational environment of marine engine rooms aboard container ships and bulk carriers, regular maintenance of hydraulic filter elements is vital for system reliability. The φ185×465 paper filter cartridge is employed during scheduled drydock overhauls and routine inspections to replace degraded filter elements within marine engine hydraulic filter systems. Its robust construction ensures it withstands salty air and vibration-induced stress, preventing hydraulic contamination that may impair pump and actuator function. Integration into existing filter assemblies complies with standard dimensions, allowing maintenance personnel to efficiently service hydraulic oil cleanliness without system downtime, thereby upholding vessel operational compliance and safety requirements.
Hydraulic Oil Change and Contamination Control
During hydraulic oil replacement and pipeline cleaning on cargo and tanker vessels, contamination control is critical to avoid debris and sludge ingress into sensitive servo valves and hydraulic pumps. This φ185×465 paper filter cartridge functions as a frontline filtration component within marine engine hydraulic filter units, effectively trapping metallic particles and emulsified impurities. Its precise filtration characteristics contribute to maintaining hydraulic system integrity and performance. By using this component, operators ensure the hydraulic fluid meets industry cleanliness standards, enabling smooth actuator response and extended equipment service life. The filter’s compatibility with hydraulic system workflows facilitates uninterrupted vessel operation and supports environmental and compliance mandates.
Routine Maintenance Guidelines
1. Standard Replacement Cycle
Normal navigation condition: Replace every 2000 running hours or 6 months (whichever comes first)
Severe working condition (new engine running-in, long-distance ocean voyage, heavily contaminated oil): Replace every 1000~1500 running hours or 3 months
Immediate mandatory replacement when differential pressure alarm activates, oil emulsifies, filter housing enters water or filter paper breaks
2. Daily Shift Inspection
Check filter differential pressure gauge record every watch; rising pressure means clogged filter, arrange replacement in advance
Visual check for oil leakage at flange, end cap and seal position
Monitor hydraulic oil operating temperature; shorten replacement cycle if temperature stays above 60℃ continuously
3. Standard Replacement Operation Steps
Isolate the filter by closing inlet & outlet valves, fully release internal pressure via air vent valve before disassembly.
Lift out used filter vertically by the stainless steel handle to prevent internal contaminants falling into filter housing.
Thoroughly wipe and flush housing cavity to clear sediment and metal debris, no cotton waste left inside.
Discard old O-rings and install brand-new sealing rings, coat thin clean hydraulic oil on rings for lubrication.
Unpack new filter, hold the handle and place vertically into housing, ensure full fit of top & bottom seals.
Fasten end cap bolts evenly, open inlet valve slowly and bleed all air inside housing; run system without load for 5 mins to
recheck pressure and leakage.
4. Spare Filter Storage Rules
Store standby filters in dry, dust-free marine spare parts storage room to avoid damp and salt fog.
Keep original sealed package intact before installation; install within 72 hours once package opened.
Do not stack heavy goods on filters to prevent deformation of stainless steel cage and crease filter paper.
After-sales Service
Custom size & filter accuracy support available upon customer demand.
Strict dimensional inspection before delivery to guarantee matching with M/E hydraulic filter housing.
Stable supply for marine vessel spare parts, fast delivery for bulk order.
